Failsafe Actuation
ProMation Fail Safe Actuators
ProMation is the only manufacturer with full set of electrical and mechanical fail safe options designed for a wide range of vital applications. ProMation fail safe solutions are used in many different areas from simple isolation valves to mission-critical flow
ProMation provides all three failsafe mechanisms:

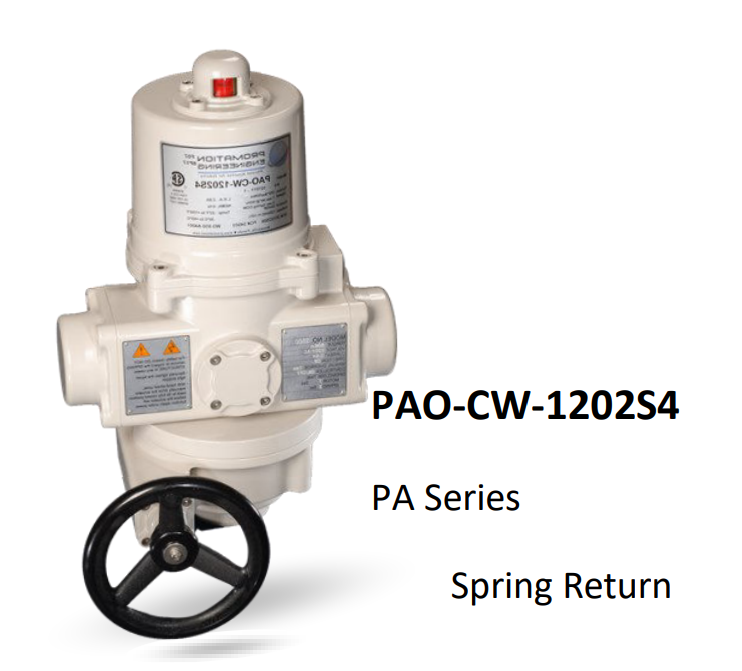

PA Series— Opposing internal mechanical springs
=>
450 to 3300 inch lbs
=>
On/Off or Modulation options
=>
Hazardous Location option Class 1 Division 1 Groups C and D

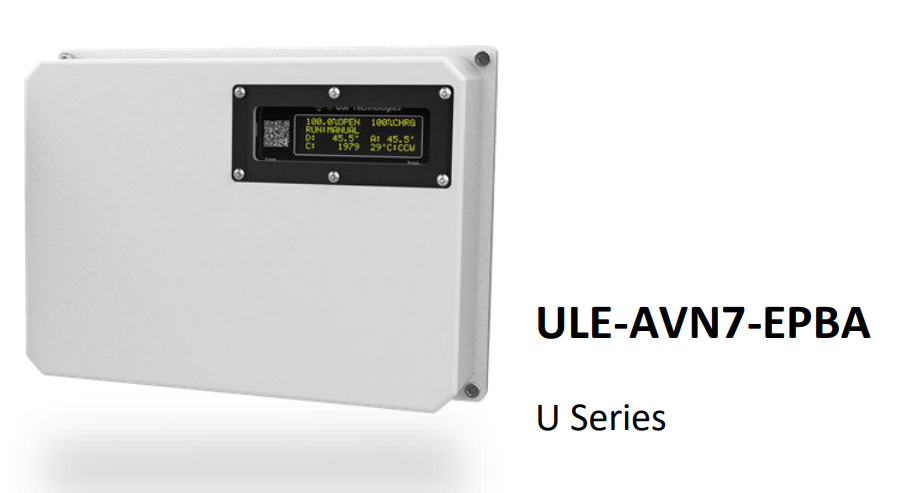

U Series—Rapid charging internal supercapacitors:
=>
400—5000 inch lbs
=>
On/Off, Modulation and Modbus standard
=>
Hazardous Location—Class 1 Division 2 Groups A, B, C, D

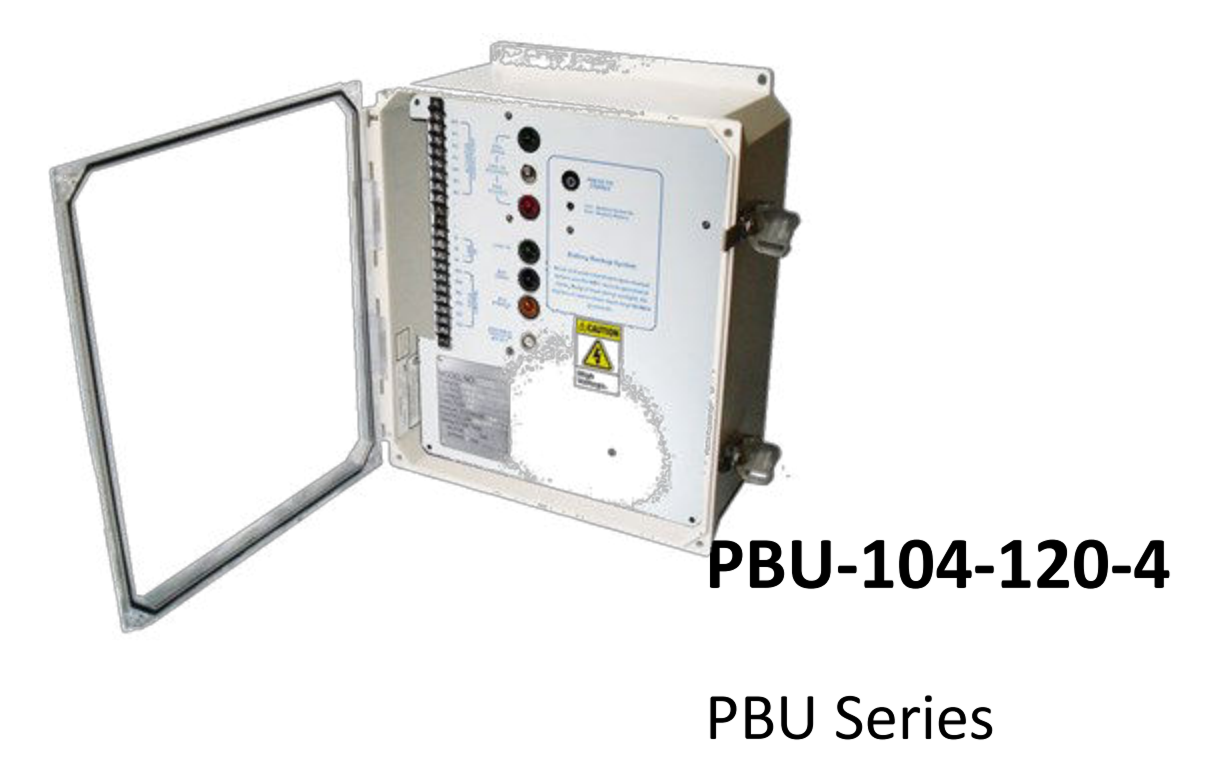

PBU Series— Sealed Lead Acid Battery
=>
Compatible with all ProMation actuators - 135 to 40,000 inch lbs
=>
On/Off or Modulation options
=>
Remote Mounted
Typical Applications:
  1. Isolation Valves
  2. Heat Exchanger Inflow Control
  3. Combustion Fuel/Air Supply
  4. Holding Tank Level Control
  1. Emergency Ventilation Systems
  2. Hydrogen Flow Control
  3. LACT Skids
  4. 3 Phase Separators
16138 Flight Path Drive Brooksville, Florida 34604 ⚫ P(352) 544-8436 F(352) 544-8439
www.promationei.com
