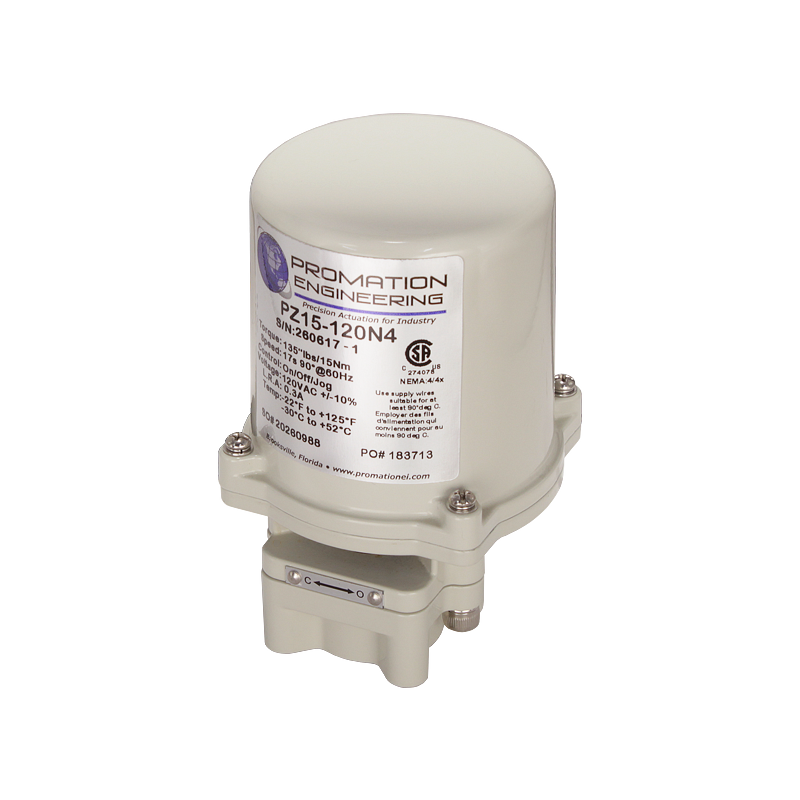

PZ6 and PZ15 Quarter Turn Actuators
The PZ6 and PZ15 are compact electric actuators designed for load requirements up to 55”lbs and 135”lbs respectively. They are compact actuator designed for small space areas. The PZ series has a NEMA 4/4x environmental rating, comes standard with an ISO5211 F03/F05 mounting pattern and a 14mm double-square female drive shaft — making either one an ideal actuator for small valve and damper applications. Available in 24vac, 120vac and 230vac supply voltages, the PZ6 and PZ15 are available ONLY as on/off (two position) models that can also be used in bump/jog applications. Auxiliary switches, heaters, and proportional control cards are not available in this series.
REQUEST MORE INFO
Category: Electric Quarter turn Actuators
- Description
- IOMs
- CAD & Dimensional Data
- Wiring Diagrams
- Product Nomenclature
- Product Family Matrix
- PROMATION BROCHURE
- CUT SHEETS
IOMs
Product Nomenclature
web product nomenclaturePROMATION BROCHURE
CUT SHEETS
