P1/P1.A/P1.B/P1.C Quarter Turn Actuators

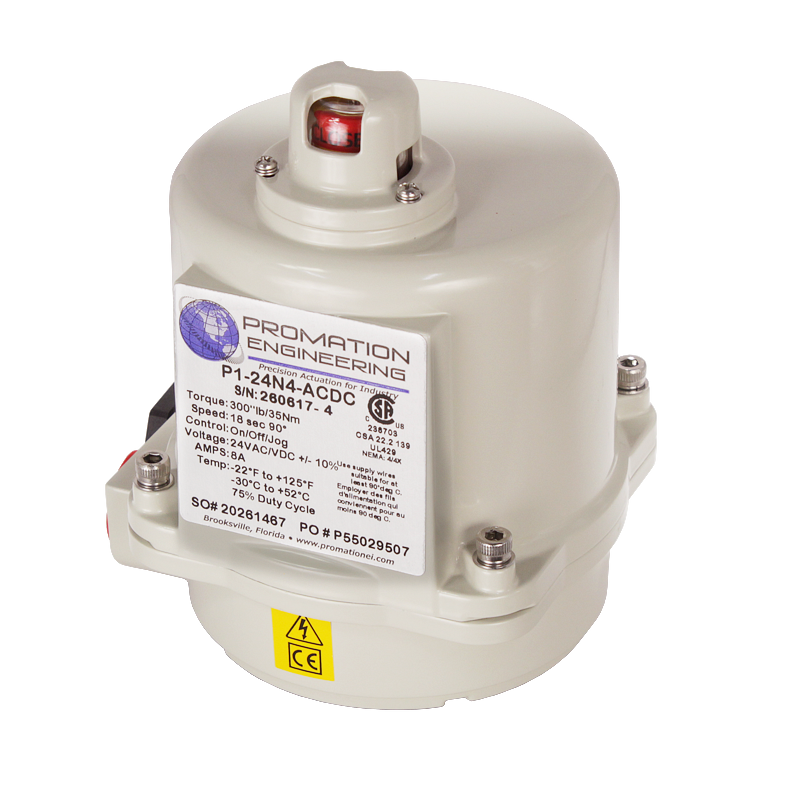

The P1 series quarter turn actuators are used on OEM applications such as filter and pump skids as well as process control, water treatment, and heating & cooling.
Key features include:
• Compact size
• A variety of run times
• Quick to install, easy to service
• Industrial grade components
• Override options for all

REQUEST MORE INFO

Description

SD15_P1A-C_LVHV_Ver N_100915
SD15_P1_Ver O_100915
SD_P1BC_Ver R_050322



IOMs

IOM P1 24V MODULATING NEMA 4/4X -ACDC

IOM P1 HV MODULATING NEMA 4/4X

IOM P1 HV MODULATING NEMA 4/4X 180

IOM P1 HV MODULATING NEMA 4/4X -CHM

IOM P1 HV MODULATING NEMA 4/4X -CHR

IOM P1 LV NEMA 4/4X +ACDC

IOM P1 LVHV NEMA 4/4X RELAY OPEN RELAY CLOSED

IOM P1-P1.B HV NEMA 4/4X

IOM P1 24V ISO & IMP NEMA 4/4X +ACDC

IOM P1 HV ISO & IMP NEMA 4/4X

IOM P1 HV NEMA 4/4X EXTENDED DUTY

IOM P1 24V -ACDC MODULATING I135

IOM P1 HV NEMA 4/4X 0-90-180

IOM P1 HV NEMA 4/4X 180

IOM P1 LV NEMA 4/4X 0-90-180

IOM P1.A HV NEMA 4/4X 0-90-45-0

IOM P1.A HV MODULATING NEMA 4/4X

IOM P1.A LV HV NEMA 4/4X RELAY OPEN RELAY CLOSED

IOM P1.A 120V MODULATING NEMA 4/4X I135

IOM P1.A 24 V MODULATING -ACDC

IOM P1.A HV NEMA 4/4X EXTENDED DUTY

IOM P1.A ISO & IMP HV NEMA 4/4X

IOM P1.A LV HV NEMA 4/4X +ACDC

IOM P1.A HV NEMA 4/4X

IOM P1.B HV NEMA 4/4X

IOM P1.B HV NEMA 4/4X 180

IOM P1.B LV NEMA 4/4X

IOM P1.B LV NEMA 4/4X +ACDC

IOM P1.C LV NEMA 4/4X (+DC)(-ACDC)





CAD & Dimensional Data

DIM DATA P1 F03 F05 8P14

DIM DATA P1 MODULATING W/ FIBERGLASS ENCLOSURE 505 8P14

DIM DATA P1.A IMPERIAL .563X.375 DD

DIM DATA P1.A F05 F07 8P17

DIM DATA P1.A MODULATING F05 F07 8P17

DIM DATA P1 MODULATING F03 F05 8P14

DIM DATA P1 IMPERIAL .563X.375 DD

DIM DATA PZ, P1, P1.A







Wiring Diagrams

WD-850-1A101C P1 P1.A P1.B P1.C 24VAC/DC USE FOR P1 (.A/.B/.C)-24N4+ACDC

WD-850-1A302 P1 24VAC/DC MODULATING USE FOR P1-24PN4-ACDC

WD-850-1D101 12 VAC USE FOR P1-12N4+AC

WD-850-12H01 USE FOR P1-24N4+DC 0-90-180

WD-850-13H01 USE FOR P1-24N4-AC 0-90-180

WD-850-13J01F MODULATING USE FOR P1-24PN4-ACDC-I135

WD-850-14H01 USE FOR P1-120N4-0-90-180

WD-850-14J01 MODULATING USE FOR P1-120PN4-I135

WD-850-15H01 3 POSITION CONTROL 230VAC USE FOR P1-230AC, 0-90-180

WD-850-11101 USE FOR P1-12N4+DC

WD-850-12103 USE FOR P1(.B/.C)-24N4+DC

WD-850-12510 RELAY OPEN OR RELAY CLOSE USE FOR P1(.B)-24N4-DC RO RC

WD-850-13510 RELAY OPEN OR RELAY CLOSED USE FOR P1 (.B)-24N4-AC RO RC

WD-850-13512 RELAY OPEN OR RELAY CLOSED W/ POSITION SWITCH DC MOTOR USE FOR P1-24N4-AC (RO OR RC)+ SW MOTOR

WD-850-14101E USE FOR P1(.B)-120N4

WD-850-14103A WITH COLD KIT USE FOR P1-120N4 W/COLD KIT

WD-850-14106 ISOLATED CONTROL USE FOR P1-120N4-103

WD-850-14201 MODULATING USE FOR P1-120PN4

WD-850-14510 RELAY OPEN RELAY CLOSED USE FOR P1(.B)-120N4 RO OR RC

WD-850-14701E EXTENED DUTY MOTOR USE FOR P1-120N4-ED

WD-850-14912 END OF TRAVEL INDICATOR USE FOR P1-120N4-EOTI

WD-850-14913 END OF TRAVEL INDICATOR USE FOR P1(.B)-120N4-EOTI

WD-850-15101E USE FOR P1(.B)-230 N4

WD-850-15301 MODULATING USE FOR P1-230PN4

WD-850-15510 RELAY OPEN RELAY CLOSED USE FOR P1(.B)-230N4 RO OR RC

WD-850-H4H01 0-45-90 USE FOR P1.A-120N4-04590

WD-850-H4H42 USE FOR P1.A-MWOEM1

WD-850-H1101 USE FOR P1.A-12N4+DC

WD-850-H1510 RELAY OPEN OR RELAY CLOSED USE FOR P1.A-12N4-DC RO OR RC

WD-850-H2510 RELAY OPEN OR RELAY CLOSED USE FOR P1.A-24N4-DC RO OR RC

WD-850-H3510 RELAY OPEN OR RELAY CLOSED USE FOR P1.A-24N4-AC RO OR RC

WD-850-H4101E USE FOR P1.A-120N4

WD-850-H4201 MODULATING USE FOR P1.A-120PN4

WD-850-H4510 RELAY OPEN OR RELAY CLOSED USE FOR P1.A-120N4 RO OR RC

WD-850-H4701E EXTENDED DUTY USE FOR P1.A-120NE ED

WD-850-H5101E USE FOR P1.A-230N4

WD-850-H5510 RELAY OPEN OR RELAY CLOSED USE FOR P1.A-230N4-RO OR RC

WD-850-H5701E EXTENDED DUTY P1.A-230N4-ED

WD-850-HA101 USE FOR P1.A-24+ACDC

WD-850-HA302 MODULATING USE FOR P1.A-24PN4-ACDC

WD-850-HD101 USE FOR P1.A-12N4+AC

WD-850-HD510 RELAY OPEN OR RELAY CLOSED USE FOR P1.A-12N4-AC RO OR RC

















Product Nomenclature

web product nomenclature

Product Family Matrix

product family matrix

PROMATION BROCHURE

ProMation Brochure

CUT SHEETS

CUT SHEET P1, B C

CUT SHEET PZ-P1.C

CUT SHEET P1.A-C HV LV

CUT SHEET P1
