P2/3 Quarter Turn Actuators

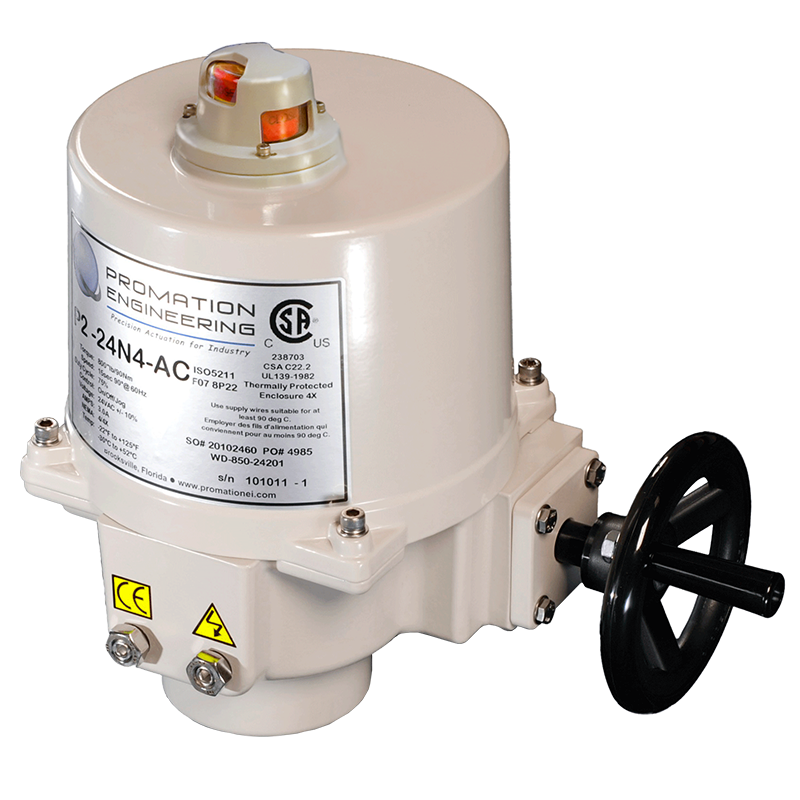

The P2/P3 family of electric actuators are designed for load requirements ranging from 800 inch pounds up to 1,335 inch pounds. The actuator comes standard with two auxiliary switches (form C), an internal low power heater, a NEMA 4X environmental rating, and in 12 VAC/DC, 24 VAC/DC, 120VAC, 230VAC 3 Phase, 380 VAC 3 Phase, and 480 VAC 3 phase supply voltages. The P2/P3 family mechanical connections are ISO 5211 compliant. The P2/P3 Series can be ordered as an on/off (two position) model that can be used in bump/jog applications as well. Models can also be ordered with an internal proportional control card that accepts a wide range of control signals and generates multiple feedback signals for field use.
