Explosion Proof Quarter Turn Actuators

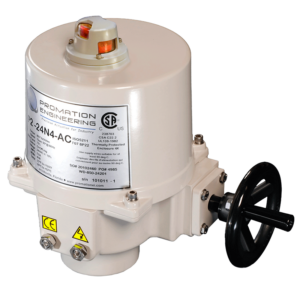

The ProMation Engineering explosion proof actuators are designed for use in hazardous locations. They meet the latest Class I and Class II Division 1 standards per UL 1203. The explosion proof actuators share the same electronic and mechanical components as the ProMation Standard Location products and give you the same reliability and performance that you’ve come to expect from our Standard Location quarter turn actuators.

The ProMation explosion proof actuators feature the only hazardous duty electric actuator that comes with a standard raised indicator allowing easy identification of actuator position. Other standard items include an anti-condensation heater, two auxiliary switches, ISO 5211 mounting, permanently lubricated locking gear train, and a clutchless manual handwheel. In addition to on/off control, the explosion proof actuators can have proportional control with 4–20 mA, 0–10, 2–10, and 1–5vdc input and feedback.
Also available: torque switch to protect motors and valves, additional auxiliary switches, and 0–220° rotation

The explosion proof actuators range in torque from 300 to 13,250 in lbs and are available in 24vac, 24vdc, 120vac, and 230vac voltages. The output gearing and mounting patterns are the same as our standard product and therefore fully compatible with valve, damper couplers and linkages that are used for nearly any industrial application.

REQUEST MORE INFO

Description

SD_P18_ N7 S7 Red_VerE_EN_082223
SD_P28_ N7 ACDC_VerP_EN_101519

IOMs

IOM P2/3 24 VOLT -DC PROPORTIONAL EXPLOSION PROOF (TORQUE SWITCH)

IOM P2/3 HIGH VOLTAGE EXPLOSION PROOF (TORQUE SWITCH)

IOM P2/3 HIGH VOLTAGE PROPORTIONAL EXPLOSION PROOF HIGH RESOLUTION (TORQUE SWITCH)

IOM P2/3 HIGH VOLTAGE PROPORTIONAL EXPLOSION PROOF

IOM P2/3 LOW VOLTAGE EXPLOSION PROOF (TORQUE SWITCH)

IOM P2-8 24V PROPORTIONAL EXPLOSION PROOF -DC PEEKTRONICS BOARD

IOM P7/8 HIGH VOLTAGE EXPLOSION PROOF (TORQUE SWITCH)

IOM P7/8 HIGH VOLTAGE PROPORTIONAL EXPLOSION PROOF (TORQUE SWITCH)

IOM P7/8 LOW VOLTAGE EXPLOSION PROOF (TORQUE SWITCH)

IOM P4-6 HIGH VOLTAGE EXPLOSION PROOF (TORQUE SWITCH)

IOM P4-6 HIGH VOLTAGE PROPORTIONAL EXPLOSION PROOF (TORQUE SWITCH)

IOM P4-6 LOW VOLTAGE EXPLOSION PROOF (TORQUE SWITCH)

IOM P4-6 LOW VOLTAGE -DC PROPORTIONAL EXPLOSION PROOF (TORQUE SWITCH)

IOM PX1 24V (+ACDC)(+DC) EXPLOSION PROOF

IOM PX1 HIGH VOLTAGE EXPLOSION PROOF

IOM PX1 HIGH VOLTAGE PROPORTIONAL EXPLOSION PROOF

IOM PX1(PX1.A) 24V ACDC PROPORTIONAL EXPLOSION PROOF

IOM PX1.A HIGH VOLTAGE EXPLOSION PROOF







CAD & Dimensional Data

Wiring Diagrams

WD-850-P4100 USE FOR P2-13 HIGH VOLTAGE EXPLOSION PROOF (TORQUE SWITCH)

WD-850-1A101 USE FOR PX1, PX1.A LOW VOLTAGE +ACDC EXPLOSION PROOF

WD-1A302 USE FOR PX1, PX1.A LOW VOLTAGE PROPORTIONAL EXPLOSION PROOF

WD-850-14101 USE FOR PX1 120V EXPLOSION PROOF

WD-850-H4101 USE FOR PX1, PX1.A 120V EXPLOSION PROOF

WD-850-23201 USE FOR P2-8 24V -AC PROPORTIONAL EXPLOSION PROOF

WD-850-64102 USE FOR P2/3 120V EXPLOSION PROOF (TORQUE SWITCH)

WD-850-M2101 USE FOR PX, P2-6 24V -DC EXPLOSION PROOF

WD-850-P4100 USE FOR P2-8 120V EXPLOSION PROOF (TORQUE SWITCH)

WD-850-PA101 USE FOR P2-8 24V +ACDC EXPLOSION PROOF





Product Nomenclature

web product nomenclature

Product Family Matrix

product family matrix

PROMATION BROCHURE

ProMation Brochure

CUT SHEETS

CUT SHEET EXPLOSION PROOF ACTUATORS

CUT SHEET EXPLOSION PROOF QUARTER TURN ACTUATORS

CUT SHEET EXPLOSION PROOF ACTUATORS SPANISH
