PC(O) Spring Return Actuators

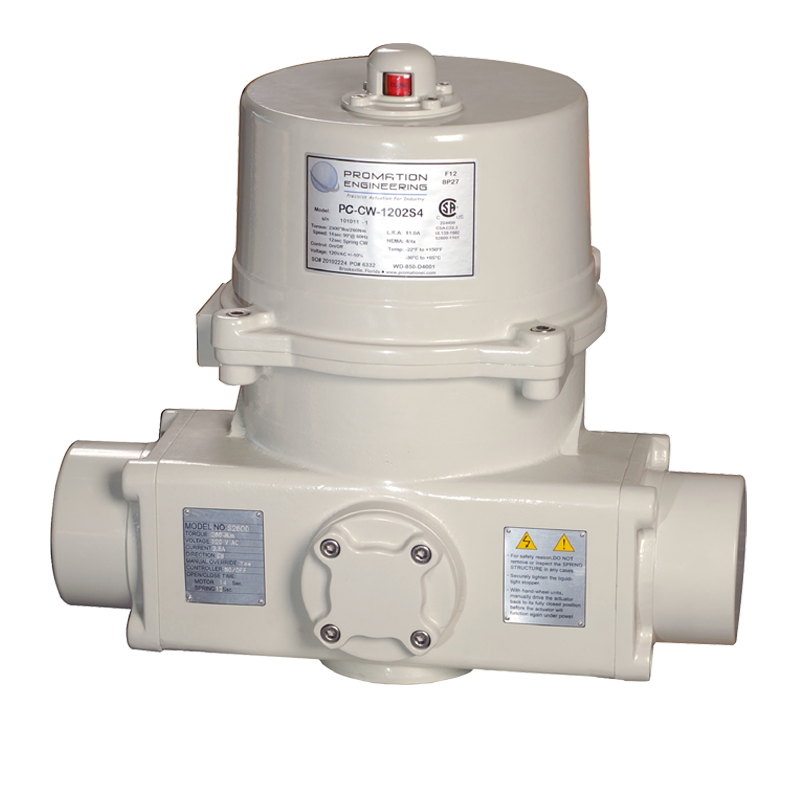

The PC(O) family of electric spring return actuators are designed for load requirements of 1750 inch pounds. The actuator comes standard with two auxiliary switches (form C), an internal low power heater, a NEMA 4X environmental rating, and in 120VAC, 230VAC, or 24VAC/DC (on/off only) supply voltages. The PC(O) Series mechanical connections utilize an ISO 5211 mounting system, Size F12 with an 8 point 27 mm female drive. The PC(O) Series is offered in two control modes: on/off (2 position control), or Proportional (modulating) control.
Application requirements will dictate whether to utilize a CW (clockwise spring return) or CCW (counter-clockwise spring return) model.
Spring return direction is NOT changeable and actuator must be configured for spring return direction at time of order.
