PD(O) Spring Return Actuators

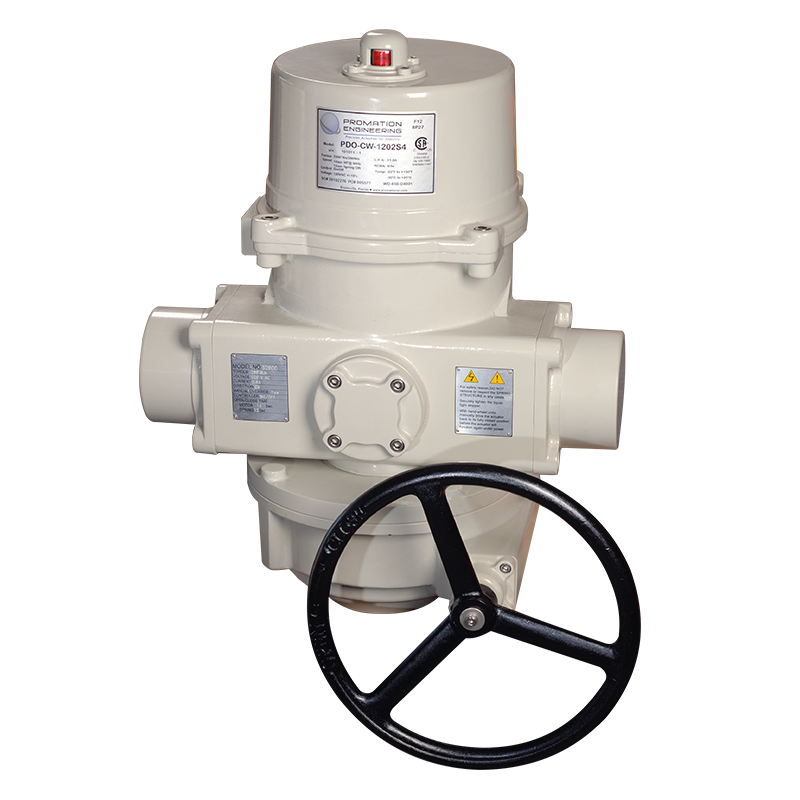

The PD(O) family of electric spring return actuators are designed for load requirements of 2300 inch pounds. The actuator comes standard with two auxiliary switches (form C), an internal low power heater, a NEMA 4X environmental rating, and in 120VAC, 230VAC, or 24VAC/DC (on/off only) supply voltages. The PD(O) Series mechanical connections utilize an ISO 5211 mounting system, Size F12 with an 8 point 27 mm female drive. The PD(O) Series is offered in two control modes: on/off (2 position control), or Proportional (modulating) control.
Application requirements will dictate whether to utilize a CW (clockwise spring return) or CCW (counter-clockwise spring return) model.
Spring return direction is NOT changeable and actuator must be configured for spring return direction at time of order.

REQUEST MORE INFO

Description

SD_PD Ver Q_111517 SD_PDO -T59 Ver C_061620 SD_PDO Ver Q_111517 SD_PD-T59 Ver A_010218

IOMs

IOM PC(O)-PD(O) COUNTERCLOCKWISE HIGH VOLTAGE ON/OFF NEMA 4 WITH OVERRIDE

IOM PC-PD COUNTERCLOCKWISE HIGH VOLTAGE ON/OFF NEMA 4

IOM PC-PD COUNTERCLOCKWISE 24V ON/OFF NEMA 4

IOM PC(O)-PD(O) COUNTERCLOCKWISE 24V ON/OFF NEMA 4 WITH OVERRIDE

IOM PB(O)-PD(O) COUNTERCLOCKWISE HIGH VOLTAGE ON/OFF MTC BTC RELAY OPEN TUNNEL

IOM PC(O)-PD(O) COUNTERCLOCKWISE HIGH VOLTAGE PROPORTIONAL NEMA 4

IOM PB(O)-PD(O) CLOCKWISE 120&230V ON/OFF NEMA 4 TUNNEL EU VERSION

IOM PB(O)-PE(O) CLOCKWISE HIGH VOLTAGE ON/OFF NEMA 4 (MTC)(BTC) (RELAY OPEN) TUNNEL

IOM PA(O)-PD(O) CLOCKWISE 24 AD/DC ON/OFF NEMA 4

IOM PA(O)-PE(O)CLOCKWISE HIGH VOLTAGE ON/OFF NEMA 4 BTC SITE CONTROL RELAY OPEN TUNNEL

IOM PC(O)-PD(O) CLOCKWISE HIGH VOLTAGE PROPORTIONAL NEMA 4



CAD & Dimensional Data

DIM DATA PC-PD CCW F12 8P27

DIM DATA PC(O)-PC(O)-PD(O) CCW F12 8P27 WITH OVERRIDE

DIM DATA PC-PD F12 CW 8P27

DIM DATA PC(O)-PD(O) CW F12 8P27 WITH OVERRIDE





Wiring Diagrams

WD 850-A4A11 E USE FOR PA-PD(O)-CW-24(120)(230) 2A(D) S 4(7) MOD X

WD 850-A4501 B USE FOR PA-PD(O)-CW-HV 2S4(7) RO

WD 850-EOA01 H USE FOR PA-PD(O)-CW-24(120)(230) 2 A(D) S4(7)

WD 850-A4C02H USE FOR PROPORTIONAL PA-PD(O)-CW-120(230)PS4(7)

WD-850-D8501 USE FOR PC(O)-PD(O) 48(6)3V ON/OFF BTC SCADA

WD-850-A8A01 USE FOR PA(O)-PD(O) CLOCKWISE 483 ON/OFF 3 PHASE

WD-850-AD8A01A USE FOR PA-PD(O)-CLOCKWISE-483 W/ TRANS 3 PHASE

WD-850-CAC01 USE FOR PC(O) CLOCKWISE 120 V PROPORTIONAL

WD-850-E0B00 B USE FOR PA(O)-PD(O) COUNTERCLOCKWISE HIGH VOLTAGE ON/OFF NEMA 4 OR EXPLOSION PROOF

WD-850-EAB02 E USE FOR PA(O)-PD(O) COUNTERCLOCKWISE 24AC/DC ON/OFF NEMA 4 OR EXPLOSION PROOF

WD-850-D8B42C PC(O)-PD(O) COUNTERCLOCKWISE 120V ON/OFF BTC (RELAY OPEN)

WD-850-B4D01 USE FOR PA(O)-PD(O) COUNTERCLOCKWISE 120V PROPORTIONAL NEMA 4

WD-850-D4A01 USE FOR PD(O)-CW-120V ON/OFF (TUNNEL)

WD-850-D4A02 USE FOR PD(O) CW 120 ON/OFF BTC (TUNNEL)

WD-850-D4A03 USE FOR PD(O) CW 120V ON/OFF MTC (TUNNEL)

WD-850-D5A01 USE FOR PD(O) CW 230V ON/OFF (TUNNEL)

WD-850-D4C01 USE FOR PD(O) CW 120V PROPORTIONAL

WD-850-D4B01 USE FOR PD(O) CCW 120V ON/OFF (TUNNEL)

WD-850-D4B02 USE FOR PD(O) CCW 120V ON/OFF BTC (TUNNEL)

WD-850-D5B01 USE FOR PD(O) CCW230V ON/OFF (TUNNEL)

WD-850-D5B02 USE FOR PD(O) CCW 230V ON/OFF BTC (TUNNEL)

WD 850-AE4A1 A USE FOR PA-E(O) CW-1202S4-BTC SC



Product Nomenclature

web product nomenclature

Product Family Matrix

Product Family Matrix Download



ProMation Product Matrix Final

TROUBLESHOOTING

TROUBLESHOOTING GUIDE FOR SPRING RETURNS

Spring Return on-off Troubleshooting

PROMATION BROCHURE

ProMation Brochure Download

CUT SHEETS

CUT SHEET SPRING RETURN PD

CUT SHEET SPRING RETURN PCO-PDO 463 T59

CUT SHEET SPRING RETURN PD T59

CUT SHEET SPRING RETURN PDO

CUT SHEET SPRING RETURN PDO T59
